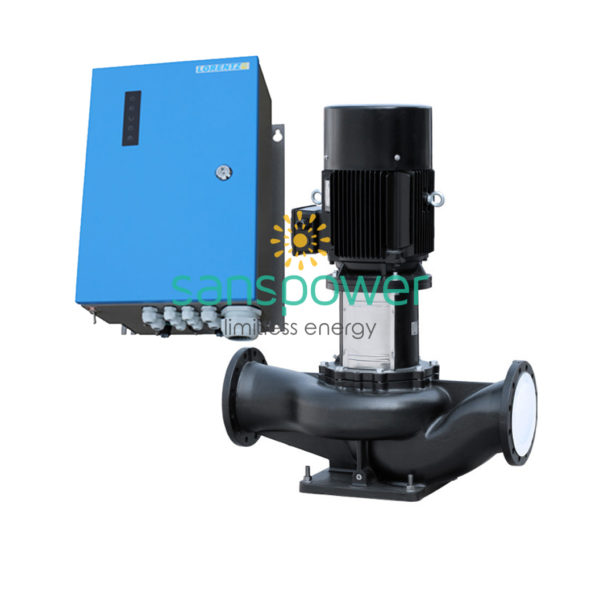

Pompa Surface LORENTZ PSk2-25 CS-G200-15/4

Fitur Utama Controller PSk2-25:

• High efficiency solar pump controller
• Hybrid power (solar/ grid/ generator) support with LORENTZ SmartSolution
• Inputs for water meter, pressure sensors, digital switches
• Onboard data logging and system monitoring
• Control inputs for dry running protection, remote control etc.
• Protected against reverse polarity, overload and overtemperature
• Integrated MPPT (Maximum Power Point Tracking)
• Integrated Sun Sensor
• Full setting using Android Apps: Lorentz PumpScanner
• Additional web based control: Lorentz PumpManager

Data Teknis Controller PSk2-25:

• Power max. 25 kW
• Input voltage max. 850 V
• Optimum Vmp** > 575 V
• Motor current max. 40 A
• Efficiency max. 98 %
• Ambient temp. -30…50 °C
• Enclosure class IP54

Fitur Utama Motor AC DRIVE CS-G 18,5 kW/4p:

• Highly efficient 3 phase AC motor
• Frequency: 25 … 50 Hz
• No electronics in the motor

Data Teknis Motor AC DRIVE CS-G 18,5 kW:

• Rated power 18,5 kW
• Efficiency max. 84 %
• Motor speed 740…1.480 rpm
• Power factor 0,87
• Insulation class F
• Enclosure class IPX4

Fitur Utama Pump End PE CS-G200-15/4:

• Premium materials
• Optional: dry running protection
• Centrifugal pump
• Efficiency max. 79 %

Pump Unit PUk2-25 CS-G200-15/4 (Motor, Pump End):

• Water temperature max. 90 °C
• Suction head acc. to COMPASS sizing

Grafik Kemampuan Operasional Pompa Surface PSk2-25 CS-G200-15/4

Data Dimensi Dan Berat Pompa Surface PSk2-25 CS-G200-15/4

Data Dimensi Controller PSk2-25

H = 500 mm
H1 = 450 mm
H2 = 421 mm
W1 = 320 mm
W2 = 290 mm
D = 9,0 mm
D1 = 226 mm

Data Dimensi Pump Unit CS-G200-15/4

A = 360 mm
B = 280 mm
C = 580 mm
D = 1.000 mm
E = 270 mm
F = 415 mm
G = 278 mm
H = 219 mm
I = 200 mm
J = 266 mm
K = 295 mm
L = 340 mm
M = 22 mm
N = 350 mm
O = 360 mm
P = 24 mm

Berat Bersih LORENTZ PSk2-25 CS-G200-15/4

1. Controller PSk-25 – 18 kg
2. Pump Unit CS-G200-15/4 – 418 kg
3. Motor AC DRIVE CS-G – 134 kg
4. Pump End CS-G200-15/4 – 284 kg
