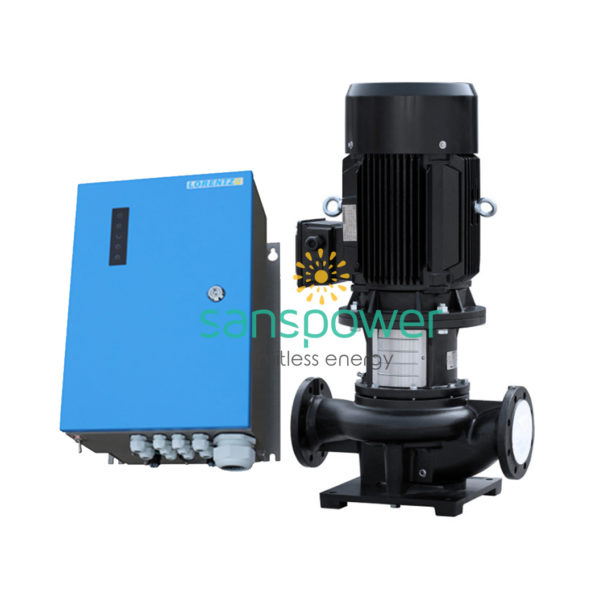

Pompa Surface LORENTZ PSk2-25 CS-G100-40/2

Fitur Utama Controller PSk2-25:

• High efficiency solar pump controller
• Hybrid power (solar/ grid/ generator) support with LORENTZ SmartSolution
• Inputs for water meter, pressure sensors, digital switches
• Onboard data logging and system monitoring
• Control inputs for dry running protection, remote control etc.
• Protected against reverse polarity, overload and overtemperature
• Integrated MPPT (Maximum Power Point Tracking)
• Integrated Sun Sensor
• Full setting using Android Apps: Lorentz PumpScanner
• Additional web based control: Lorentz PumpManager

Data Teknis Controller PSk2-25:

• Power max. 25 kW
• Input voltage max. 850 V
• Optimum Vmp** > 575 V
• Motor current max. 40 A
• Efficiency max. 98 %
• Ambient temp. -30…50 °C
• Enclosure class IP54

Fitur Utama Motor AC DRIVE CS-G 18,5 kW/4p:

• Highly efficient 3 phase AC motor
• Frequency: 25 … 51 Hz
• No electronics in the motor

Data Teknis Motor AC DRIVE CS-G 18,5 kW:

• Rated power 18,5 kW
• Efficiency max. 84 %
• Motor speed 1.400…2.905 rpm
• Power factor 0,87
• Insulation class F
• Enclosure class IPX4

Fitur Utama Pump End PE CS-G100-40/2:

• Premium materials
• Optional: dry running protection
• Centrifugal pump
• Efficiency max. 78 %

Pump Unit PUk2-25 CS-G100-40/2 (Motor, Pump End):

• Water temperature max. 90 °C
• Suction head acc. to COMPASS sizing

Grafik Kemampuan Operasional Pompa Surface PSk2-25 CS-G100-40/2

Data Dimensi Dan Berat Pompa Surface PSk2-25 CS-G100-40/2

Data Dimensi Controller PSk2-25

H = 500 mm
H1 = 450 mm
H2 = 421 mm
W1 = 320 mm
W2 = 290 mm
D = 9,0 mm
D1 = 226 mm

Data Dimensi Pump Unit CS-G100-40/2

A = 350 mm
B = 265 mm
C = 550 mm
D = 550 mm
E = 140 mm
F = 270 mm
G = 181 mm
H = 152 mm
I = 100 mm
J = 156 mm
K = 180 mm
L = 220 mm
M = 18 mm
N = 350 mm
O = 230 mm
P = M16 mm
Q = 340 mm
R = 290 mm
S = 230 mm
T = 19 mm
U = 18 mm
V = 35 mm

Berat Bersih LORENTZ PSk2-25 CS-G100-40/2

1. Controller PSk-25 – 18 kg
2. Pump Unit CS-G100-40/2 – 224 kg
3. Motor AC DRIVE CS-G – 134 kg
4. Pump End CS-G100-40/2 – 90 kg
