LORENTZ PS2-4000 CS-F32-20-2

Download datasheet pompa surface Lorentz PS2-4000 CS-F32-20-2

e-catalog

Cek produk di E-Catalogue LKPP

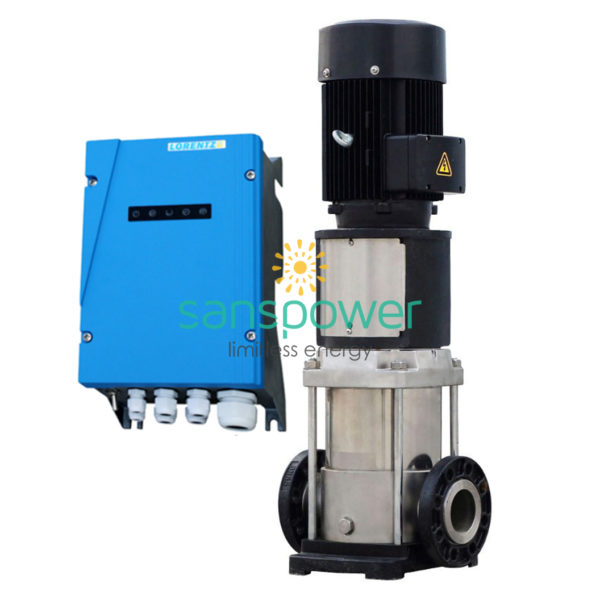

Pompa Surface LORENTZ PS2-4000 CS-F32-20-2

Fitur Utama Controller PS2-4000:
  • Controlling and monitoring
  • Control inputs for dry running protection, remote control etc.
  • Protected against reverse polarity, overload and overtemperature
  • Integrated MPPT (Maximum Power Point Tracking)
  • Integrated Sun Sensor
  • Full setting using Android Apps: Lorentz PumpScanner
  • Additional web based control: Lorentz PumpManager
Data Teknis Controller PS2-4000:
  • Power max. 4,0 kW
  • Input voltage max. 375 V
  • Optimum Vmp** > 238 V
  • Motor current max. 14 A
  • Efficiency max. 98 %
  • Ambient temp. -40…50 °C
  • Enclosure class IP68
Fitur Utama Motor ECDRIVE 4000 CS-F:
  • Maintenance-free brushless DC motor
  • Premium materials, stainless steel: AL/AISI 304
  • No electronics in the motor
Data Teknis Motor ECDRIVE 4000 CS-F:
  • Rated power 4,0 kW
  • Efficiency max. 92 %
  • Motor speed 900…3.300 rpm
  • Insulation class F
  • Enclosure class IPX4
Fitur Utama Pump End PE CS-F32-20-2:
  • Premium materials
  • Optional: dry running protection
  • Centrifugal pump
  • Efficiency max. 74 %
Pump Unit PU1800 CS-F32-20-2 (Motor, Pump End):
  • Water temperature max. 70 °C
  • Suction head acc. to COMPASS sizing
Grafik Kemampuan Operasional Pompa Surface PS2-4000 CS-F32-20-2

grafik pompa surface PS2-4000-CS-F32-20-2

Data Dimensi Dan Berat Pompa Surface PS2-4000 CS-F32-20-2

Data Dimensi Controller PS2-4000

controller pompa surface PS2-4000-CS-F32-20-2

H1 = 352 mm
H2 = 333 mm
W1 = 207 mm
W2 = 170 mm
W3 = 164 mm
D1 = 124 mm

Data Dimensi Pump Unit CS-F32-20-2

dimensi pompa surface PS2-4000-CS-F32-20-2

A = 162 mm
B = 132 mm
C = 286 mm
D = 320 mm
E = 225 mm
F = 170 mm
G = 105 mm
H = 575 mm
I = G1/2″
J = 298 mm
K = 240 mm
L = 74 mm
M = 145 mm
N = 18 mm
O = 30 mm
P = 14 mm

Berat Bersih LORENTZ PS2-4000 CS-F32-20-2
  1. Controller PS-4000 – 6,1 kg
  2. Pump Unit CS-F32-20-2 – 63 kg
  3. Motor ECDRIVE 4000 CS – 15 kg
  4. Pump End CS-F32-20-2 – 48 kg




Jual pompa surface Lorentz untuk air bersih
Jual pompa surface Lorentz untuk irigasi
Konsultasi desain sistem silakan kontak tim kami
