LORENTZ PS2-1800 CS-F4-6

Download datasheet pompa surface Lorentz PS2-1800 CS-F4-6

e-catalog

Cek produk di E-Catalogue LKPP

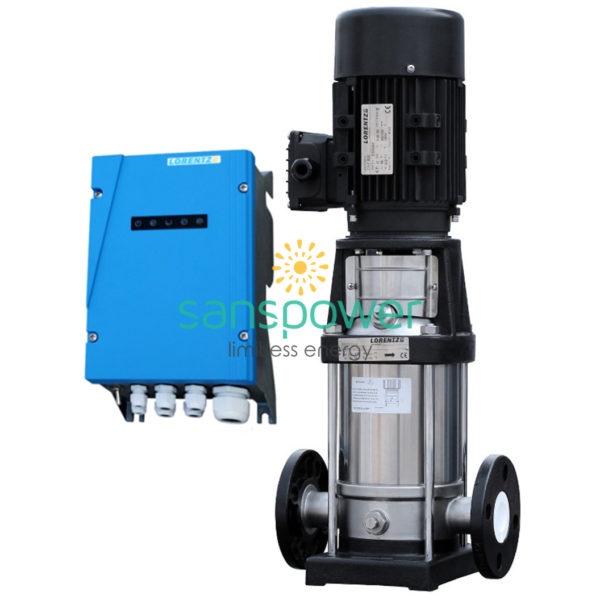

Pompa Surface LORENTZ PS2-1800 CS-F4-6

Fitur Utama Controller PS2-1800:
  • Controlling and monitoring
  • Control inputs for dry running protection, remote control etc.
  • Protected against reverse polarity, overload and overtemperature
  • Integrated MPPT (Maximum Power Point Tracking)
  • Battery operation: Integrated low voltage disconnect
  • Full setting using Android Apps: Lorentz PumpScanner
  • Additional web based control: Lorentz PumpManager
Data Teknis Controller PS2-1800:
  • Power max. 1,8 kW
  • Input voltage max. 200 V
  • Optimum Vmp** > 102 V
  • Motor current max. 14 A
  • Efficiency max. 98 %
  • Ambient temp. -40…50 °C
  • Enclosure class IP68
Fitur Utama Motor ECDRIVE 1800 CS-F:
  • Maintenance-free brushless DC motor
  • Premium materials, stainless steel: AL/AISI 304
  • No electronics in the motor
Data Teknis Motor ECDRIVE 1800 CS-F:
  • Rated power 1,7 kW
  • Efficiency max. 92 %
  • Motor speed 900…3.300 rpm
  • Insulation class F
  • Enclosure class IPX4
Fitur Utama Pump End PE CS-F4-6:
  • Premium materials
  • Optional: dry running protection
  • Centrifugal pump
  • Efficiency max 53 %
Pump Unit PU1800 CS-F4-6 (Motor, Pump End):
  • Water temperature max. 70 °C
  • Suction head acc. to COMPASS sizing
Grafik Kemampuan Operasional Pompa Surface PS2-1800 CS-F4-6

pompa-surface-pump-chart-PS2-1800-CS-F4-6-sanspower

Data Dimensi Dan Berat Pompa Surface PS2-1800 CS-F4-6

Data Dimensi Controller PS2-1800

pompa-surface-lorentz-controller-PS2-1800-CS-F4-6

H1 = 352 mm
H2 = 333 mm
W1 = 207 mm
W2 = 170 mm
W3 = 164 mm
D1 = 124 mm

Data Dimensi Pump Unit CS-F4-6

pompa-surface-lorentz-pump-unit-PS2-1800 CS-F4-6

A = 150 mm
B = 120 mm
C = 255 mm
D = 250 mm
E = 150 mm
F = 100 mm
G = 75 mm
H = 394 mm
I = G1/2″
J = 210 mm
K = 180 mm
L = 32 mm
M = 100 mm
N = 18 mm
O = 32 mm
P = 13 mm

Berat Bersih LORENTZ PS2-1800 CS-F4-6
  1. Controller PS-1800 – 6,0 kg
  2. Pump Unit CS-F4-6 – 27 kg
  3. Motor ECDRIVE 1800 CS – 9,9 kg
  4. Pump End CS-F4-6 – 17 kg
