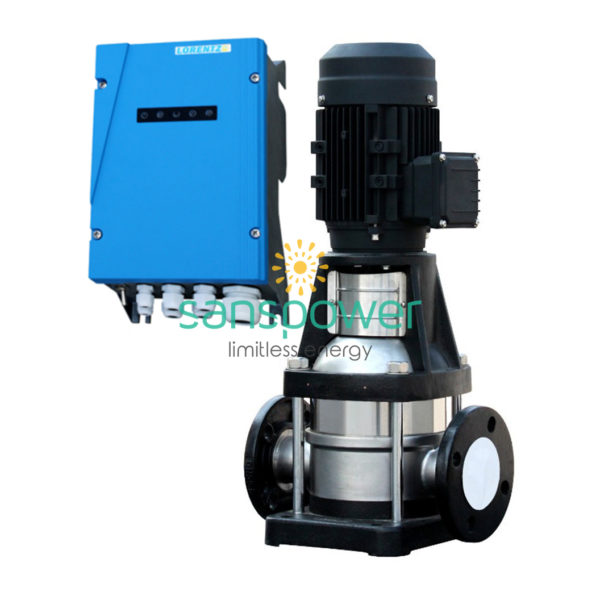

Pompa Surface LORENTZ PS2-1800 CS-F12-2

Fitur Utama Controller PS2-1800:

• Controlling and monitoring
• Control inputs for dry running protection, remote control etc.
• Protected against reverse polarity, overload and overtemperature
• Integrated MPPT (Maximum Power Point Tracking)
• Battery operation: Integrated low voltage disconnect
• Full setting using Android Apps: Lorentz PumpScanner
• Additional web based control: Lorentz PumpManager

Data Teknis Controller PS2-1800:

• Power max. 1,8 kW
• Input voltage max. 200 V
• Optimum Vmp** > 102 V
• Motor current max. 14 A
• Efficiency max. 98 %
• Ambient temp. -40…50 °C
• Enclosure class IP68

Fitur Utama Motor ECDRIVE 1800 CS-F:

• Maintenance-free brushless DC motor
• Premium materials, stainless steel: AL/AISI 304
• No electronics in the motor

Data Teknis Motor ECDRIVE 1800 CS-F:

• Rated power 1,7 kW
• Efficiency max. 92 %
• Motor speed 900…3.300 rpm
• Insulation class F
• Enclosure class IPX4

Fitur Utama Pump End PE CS-F12-2:

• Premium materials
• Optional: dry running protection
• Centrifugal pump
• Efficiency max. 60 %

Pump Unit PU1800 CS-F12-2 (Motor, Pump End):

• Water temperature max. 70 °C
• Suction head acc. to COMPASS sizing

Grafik Kemampuan Operasional Pompa Surface PS2-1800 CS-F12-2

Data Dimensi Dan Berat Pompa Surface PS2-1800 CS-F12-2

Data Dimensi Controller PS2-1800

H1 = 352 mm
H2 = 333 mm
W1 = 207 mm
W2 = 170 mm
W3 = 164 mm
D1 = 124 mm

Data Dimensi Pump Unit CS-F12-2

A = 150 mm
B = 120 mm
C = 255 mm
D = 300 mm
E = 199 mm
F = 130 mm
G = 90 mm
H = 367 mm
I = G1/2″
J = 247 mm
K = 215 mm
L = 50 mm
M = 125 mm
N = 18 mm
O = 32 mm
P = 14 mm

Berat Bersih LORENTZ PS2-1800 CS-F12-2

1. Controller PS-1800 – 6,0 kg
2. Pump Unit CS-F12-2 – 35 kg
3. Motor ECDRIVE 1800 CS – 9,9 kg
4. Pump End CS-F12-2 – 25 kg
