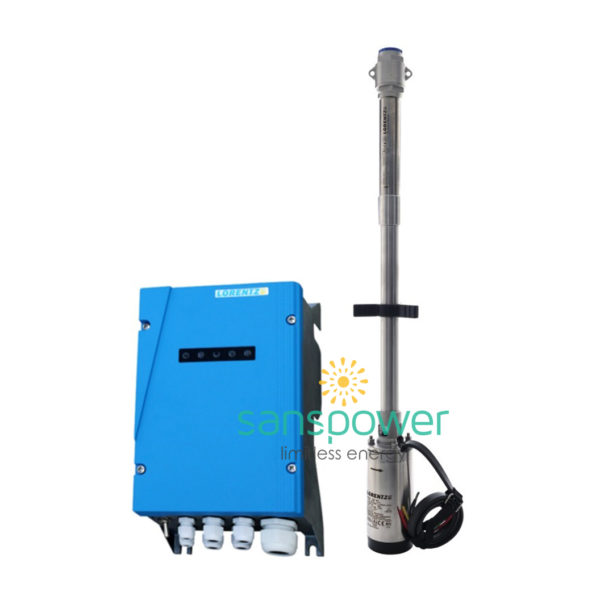

Pompa Submersible LORENTZ PS2-1800 HRE-14H

Fitur Utama Controller PS2-1800:

• Controlling and monitoring
• Control inputs for dry running protection, remote control etc.
• Protected against reverse polarity, overload and overtemperature
• Integrated MPPT (Maximum Power Point Tracking)
• Battery operation: Integrated low voltage disconnect
• Integrated Sun Sensor
• Full setting using Android Apps: Lorentz PumpScanner
• Additional web based control: Lorentz PumpManager

Data Teknis Controller PS2-1800:

• Power max. 1,8 kW
• Input voltage max. 200 V
• Optimum Vmp** > 102 V
• Motor current max. 14 A
• Efficiency max. 98 %
• Ambient temp. -40…50 °C
• Enclosure class IP68

Fitur Utama Motor ECDRIVE 1800-HRE:

• Maintenance-free brushless DC motor
• Water filled
• Premium materials, stainless steel: AISI 304/316
• No electronics in the motor

Data Teknis Motor ECDRIVE 1800-HRE:

• Rated power 1,7 kW
• Efficiency max. 92 %
• Motor speed 900…3.300 rpm
• Insulation class F
• Enclosure class IP68
• Submersion max. 150 m

Fitur Utama Pump End PE HRE-14H

• Non-return valve
• Premium materials, stainless steel: AISI 304
• Optional: dry running protection
• Helical rotor pump
• Efficiency max 79 %

Pump Unit PU1800 PE HRE-14H (Motor, Pump End):

• Borehole diameter min. 4,0 inchi
• Water temperature max. 50 °C

Grafik Kemampuan Operasional Pompa Submersible PS2-1800 HRE-14H

Data Dimensi Dan Berat Pompa Submersible PS2-1800 HRE-14H

Data Dimensi Controller PS2-1800

H1 = 352 mm
H2 = 333 mm
W1 = 207 mm
W2 = 170 mm
W3 = 164 mm
D1 = 124 mm

Data Dimensi Pump Unit HRE-14H

A = 970 mm
B = 205 mm
C = 765 mm
D = 96 mm
E = 147 mm
S = 1,25 in

Berat Bersih Pompa Submersible LORENTZ PS2-1800 HRE-14H

1. Controller PS-1800 – 6,0 kg
2. Pump Unit HRE-14H – 11 kg
3. Motor ECDRIVE 1800-HRE – 6,8 kg
4. Pump End HRE-14H – 4,4 kg
