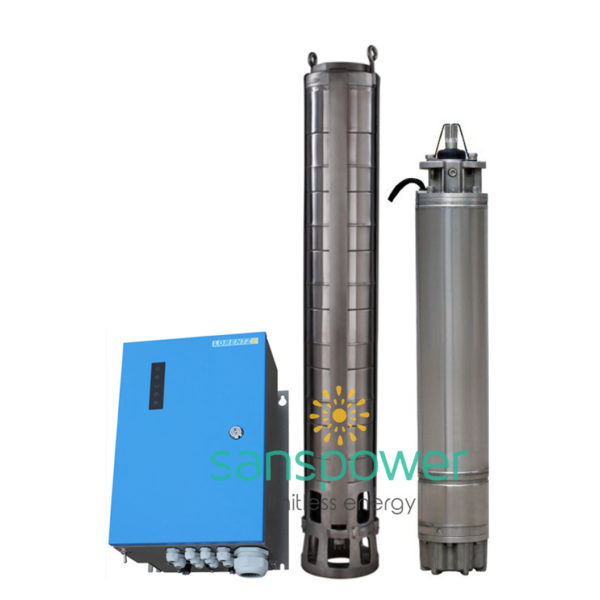

Pompa Submersible LORENTZ PSk2-7 C-SJ30-6

Fitur Utama Controller PSk2-7:

• High efficiency solar pump controller
• Hybrid power (solar / grid / generator) support with LORENTZ SmartSolution
• Inputs for water meter, pressure sensors, digital switches
• Onboard data logging and system monitoring
• Inbuilt applications for constant pressure, constant flow and daily amount
• Integrated Sun Sensor
• Active temperature management
• Integrated MPPT (Maximum Power Point Tracking)
• Full setting using Android Apps: Lorentz PumpScanner
• Additional web based control: Lorentz PumpManager

Data Teknis Controller PSk2-7:

• Power max. 8,0 kW
• Input voltage max. 850 V
• Optimum Vmp** > 575 V
• Motor current max. 13 A
• Efficiency max. 98 %
• Ambient temp. -30…50 °C
• Enclosure class IP54

Fitur Utama Motor AC DRIVE SUB 6″ 5,5 kW:

• Highly Efficient 3-phase AC motor
• Frequency: 25…51hz
• Premium materials, stainless steel: AISI 304
• No electronics in the motor

Data Teknis Motor AC DRIVE SUB 6″:

• Rated power 5,5 kW
• Efficiency max. 85 %
• Motor speed 1400…2.905 rpm
• Power Factor 0,88
• Insulation class F
• Enclosure class IP68
• Submersion max. 150 m

Fitur Utama Pump End PE C-SJ30-6

• Non-return valve
• Premium materials, stainless steel: AISI 304
• Optional: dry running protection
• Centrifugal pump
• Efficiency max 65 %

Pump Unit PUk2-7 PE C-SJ30-6 (Motor, Pump End):

• Borehole diameter min. 6,0 inchi
• Water temperature max. 30 °C****

Grafik Kemampuan Operasional Pompa Submersible PSk2-7 C-SJ30-6

Data Dimensi Dan Berat Pompa Submersible PSk2-7 C-SJ30-6

Data Dimensi Controller PSk2-7

H = 500 mm
H1 = 450 mm
H2 = 421 mm
W1 = 320 mm
W2 = 290 mm
D = 9,0 mm
D1 = 226 mm

Data Dimensi Pump Unit PUk2-7 C-SJ30-6

A = 1.610 mm
B = 750 mm
C = 860 mm
D = 143 mm
E = 133 mm
S = 3 in

Berat Bersih Pompa Submersible PSk2-7 C-SJ30-6

1. Controller PSk2-7 – 18 kg
2. Pump Unit PUk2-7 C-SJ30-6 – 64 kg
3. Motor AC DRIVE SUB 6″  – 48 kg
4. Pump End C-SJ30-6 – 16 kg
