LORENTZ PSk2-25 C-SJ30-22

Rp235000000
Category: Tags:
Ratings:
+
Deskripsi

Description

Download Datasheet

LORENTZ PSk2-25 C-SJ30-22

Download datasheet pompa submersible Lorentz PSk2-25 C-SJ30-22

e-catalog

Cek produk di E-Catalogue LKPP

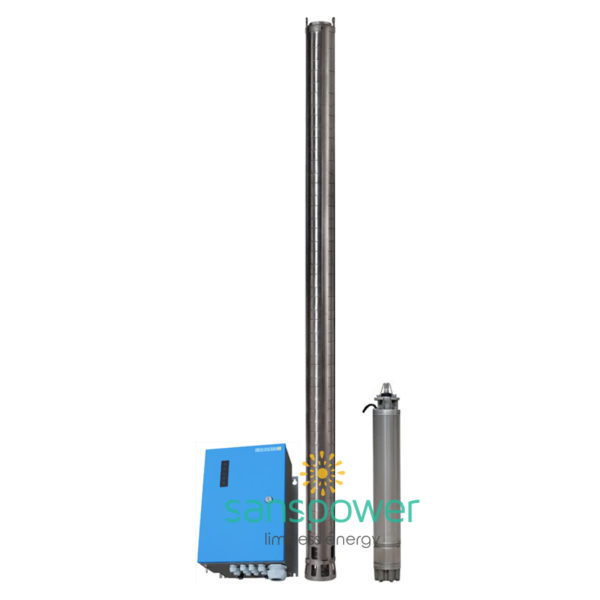

Pompa Submersible LORENTZ PSk2-25 C-SJ30-22

Fitur Utama Controller PSk2-25:
  • High efficiency solar pump controller
  • Hybrid power (solar / grid / generator) support with LORENTZ SmartSolution
  • Inputs for water meter, pressure sensors, digital switches
  • Simple configuration with LORENTZ PumpScanner Android App
  • Onboard data logging and system monitoring
  • Inbuilt applications for constant pressure, constant flow and daily amount
  • Integrated Sun Sensor
  • Active temperature management
  • Integrated MPPT (Maximum Power Point Tracking)
  • Full setting using Android Apps: Lorentz PumpScanner
  • Additional web based control: Lorentz PumpManager
Data Teknis Controller PSk2-25:
  • Power max.25 kW
  • Input voltage max. 850 V
  • Optimum Vmp** > 575 V
  • Motor current max. 40 A
  • Efficiency max. 98 %
  • Ambient temp. -30…50 °C
  • Enclosure class IP54
Fitur Utama Motor AC DRIVE SUB 6″ 18.5 kW:
  • Highly Efficient 3-phase AC motor
  • Frequency: 25…50hz
  • Premium materials, stainless steel: AISI 304
  • No electronics in the motor
Data Teknis Motor AC DRIVE SUB 6″:
  • Rated power 18.5 kW
  • Efficiency max. 84 %
  • Motor speed 1.400…2.850 rpm
  • Power Factor 0,87
  • Insulation class F
  • Enclosure class IP68
  • Submersion max. 150 m
Fitur Utama Pump End PE C-SJ30-22
  • Non-return valve
  • Premium materials, stainless steel: AISI 304
  • Centrifugal pump
  • Efficiency max 72 %
Pump Unit PUk2-25 PE C-SJ30-22 (Motor, Pump End):
  • Borehole diameter min. 6,0 inchi
  • Water temperature max. 30 °C****
Grafik Kemampuan Operasional Pompa Submersible PSk2-25 C-30-22

lorentz-pump-chart-psk2-25_c_30-22



Data Dimensi Dan Berat Pompa Submersible PSk2-25 C-SJ30-22

Data Dimensi Controller PSk2-25

lorentz-controllerpsk2-25_c_30-22

H = 500 mm
H1 = 450 mm
H2 = 421 mm
W1 = 320 mm
W2 = 290 mm
D = 9,0 mm
D1 = 226 mm

Data Dimensi Pump Unit PUk2-25 C-SJ30-22

lorentz-pump-unit-psk2-25_c_30-22

A = 3.412 mm
B = 1.018 mm
C = 2.394 mm
D = 143 mm
E = 133 mm
S = 3 in

Berat Bersih Pompa Submersible PSk2-25 C-SJ30-22
  1. Controller PSk2-25 – 18 kg
  2. Pump Unit PUk2-25 C-SJ30-22 – 118 kg
  3. Motor AC DRIVE SUB 6″  – 73 kg
  4. Pump End C-SJ30-22 – 45 kg
