LORENTZ PSk2-15 C-SJ17-18

Rp174000000
Category: Tags:
Ratings:
+
Deskripsi

Description

Download Datasheet

LORENTZ PSk2-15 C-SJ17-18

Download datasheet pompa submersible Lorentz PSk2-15 C-SJ17-18

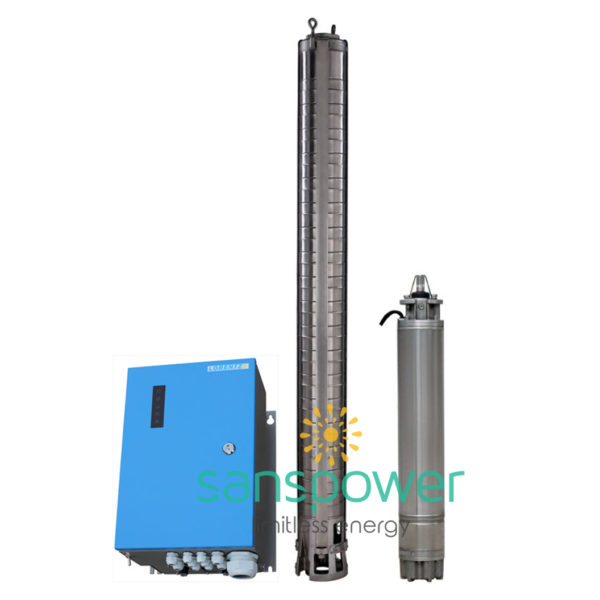

Pompa Submersible LORENTZ PSk2-15 C-SJ17-18

Fitur Utama Controller PSk2-15:
  • High efficiency solar pump controller
  • Hybrid power (solar / grid / generator) support with LORENTZ SmartSolution
  • Inputs for water meter, pressure sensors, digital switches
  • Onboard data logging and system monitoring
  • Inbuilt applications for constant pressure, constant flow and daily amount
  • Integrated Sun Sensor
  • Active temperature management
  • Integrated MPPT (Maximum Power Point Tracking)
  • Full setting using Android Apps: Lorentz PumpScanner
  • Additional web based control: Lorentz PumpManager
Data Teknis Controller PSk2-15:
  • Power max. 15 kW
  • Input voltage max. 850 V
  • Optimum Vmp** > 575 V
  • Motor current max. 24 A
  • Efficiency max. 98 %
  • Ambient temp. -30…50 °C
  • Enclosure class IP54
Fitur Utama Motor AC DRIVE SUB 6″ 11 kW:
  • Highly Efficient 3-phase AC motor
  • Frequency: 25…50hz
  • Premium materials, stainless steel: AISI 304
  • No electronics in the motor
Data Teknis Motor AC DRIVE SUB 6″:
  • Rated power 11 kW
  • Efficiency max. 80 %
  • Motor speed 1.400…2.850 rpm
  • Power Factor 0,87
  • Insulation class F
  • Enclosure class IP68
  • Submersion max. 150 m
Fitur Utama Pump End PE C-SJ17-18
  • Non-return valve
  • Premium materials, stainless steel: AISI 304
  • Centrifugal pump
  • Efficiency max 74 %
Pump Unit PUk2-15 PE C-SJ17-18 (Motor, Pump End):
  • Borehole diameter min. 6,0 inchi
  • Water temperature max. 30 °C****
Grafik Kemampuan Operasional Pompa Submersible PSk2-15 C-SJ17-18

lorentz-pump-chart-psk2-15_c_17-18



Data Dimensi Dan Berat Pompa Submersible PSk2-15 C-SJ17-18

Data Dimensi Controller PSk2-15

lorentz-controller-psk2-15_c_17-18

H = 500 mm
H1 = 450 mm
H2 = 421 mm
W1 = 320 mm
W2 = 290 mm
D = 9,0 mm
D1 = 226 mm

Data Dimensi Pump Unit PUk2-15 C-SJ17-18

lorentz-pump-unit-psk2-15_c_17-18

A = 2.083 mm
B = 711 mm
C = 1.372 mm
D = 144 mm
E = 133 mm
S = 2,5 in

Berat Bersih Pompa Submersible PSk2-15 C-SJ17-18
  1. Controller PSk2-15 – 18 kg
  2. Pump Unit PUk2-15 C-SJ17-18 – 86 kg
  3. Motor AC DRIVE SUB 6″  – 57 kg
  4. Pump End C-SJ17-18 – 29 kg
