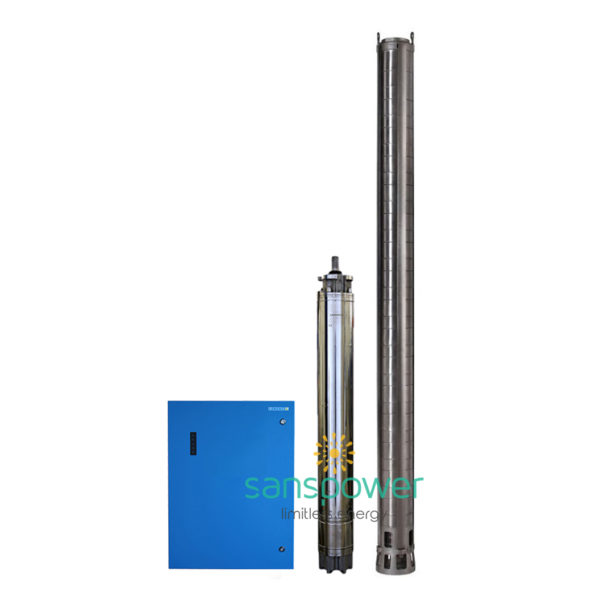

Pompa Submersible LORENTZ PSk2-10 C-SJ95-17

Fitur Utama Controller PSk2-100:

• High efficiency solar pump controller
• Hybrid power (solar / grid / generator) support with LORENTZ SmartSolution
• Inputs for water meter, pressure sensors, digital switches
• Onboard data logging and system monitoring
• Inbuilt applications for constant pressure, constant flow and daily amount
• Integrated Sun Sensor
• Active temperature management
• Integrated MPPT (Maximum Power Point Tracking)
• Full setting using Android Apps: Lorentz PumpScanner
• Additional web based control: Lorentz PumpManager

Data Teknis Controller PSk2-100:

• Power max. 90 kW
• Input voltage max. 850 V
• Optimum Vmp** > 575 V
• Motor current max. 160 A
• Efficiency max. 98 %
• Ambient temp. -10…50 °C
• Enclosure class IP54

Fitur Utama Motor AC DRIVE SUB 8″ 75 kW:

• Highly Efficient 3-phase AC motor
• Frequency: 30…51hz
• Premium materials, stainless steel: AISI 304
• No electronics in the motor

Data Teknis Motor AC DRIVE SUB 8″:

• Rated power 75 kW
• Efficiency max. 84 %
• Motor speed 1690…2.905 rpm
• Power Factor 0,85
• Insulation class F
• Enclosure class IP68
• Submersion max. 150 m

Fitur Utama Pump End PE C-SJ95-17

• Non-return valve
• Premium materials, stainless steel: AISI 304
• Optional: dry running protection
• Centrifugal pump
• Efficiency max 81 %

Pump Unit PUk2-100 PE C-SJ95-17 (Motor, Pump End):

• Borehole diameter min. 8,0 inchi
• Water temperature max. 30 °C****

Grafik Kemampuan Operasional Pompa Submersible PSk2-100 C-SJ95-17

Data Dimensi Dan Berat Pompa Submersible PSk2-100 C-SJ95-17

Data Dimensi Controller PSk2-100

H = 859 mm
H1 = 800 mm
H2 = 350 mm
W1 = 610 mm
W2 = 576 mm
D = 10 mm
D1 = 402 mm

Data Dimensi Pump Unit PUk2-100 C-SJ95-17

A = 4.166 mm
B = 1.645 mm
C = 2.521 mm
D = 196 mm
E = 197 mm
S = 5 in

Berat Bersih Pompa Submersible PSk2-100 C-SJ95-17

1. Controller PSk2-100 – 60 kg
2. Pump Unit PUk2-100 C-SJ95-17 – 341 kg
3. Motor AC DRIVE SUB 8″  – 211 kg
4. Pump End C-SJ95-17 – 130 kg
