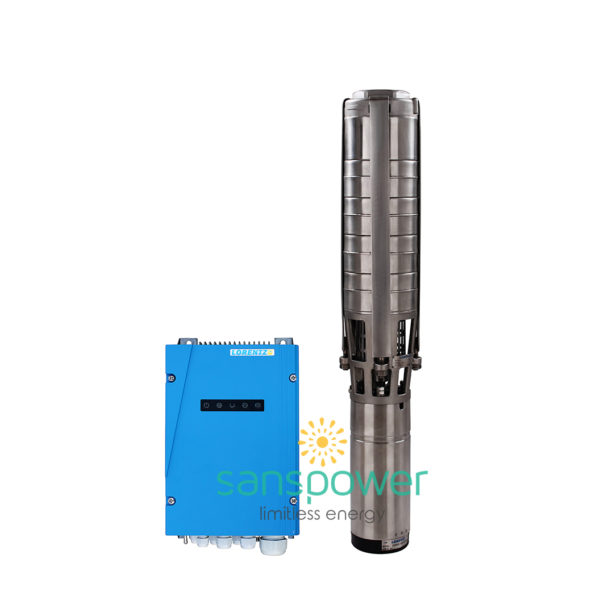

Pompa Submersible LORENTZ PS2-4000 C-SJ17-4

Fitur Utama Controller PS2-4000:

• Controlling and monitoring
• Control inputs for dry running protection, remote control etc.
• Protected against reverse polarity, overload and overtemperature
• Integrated MPPT (Maximum Power Point Tracking Integrated
• Integrated Sun Sensor
• Battery operation: Integrated low voltage disconnect
• Integrated Sun Sensor
• Full setting using Android Apps: Lorentz PumpScanner
• Additional web based control: Lorentz PumpManager

Data Teknis Controller PS2-4000:

• Power max. 4,0 kW
• Input voltage max. 375 V
• Optimum Vmp** > 238 V
• Motor current max. 14 A
• Efficiency max. 98 %
• Ambient temp. -40…50 °C
• Enclosure class IP68

Fitur Utama Motor ECDRIVE 4000-C:

• Maintenance-free brushless DC motor
• Water filled
• Premium materials, stainless steel: AISI 304/316
• No electronics in the motor

Data Teknis Motor ECDRIVE 4000-C:

• Rated power 4,0 kW
• Efficiency max. 92 %
• Motor speed 900…3.300 rpm
• Insulation class F
• Enclosure class IP68
• Submersion max. 150 m

Fitur Utama Pump End PE C-SJ17-4:

• Non-return valve
• Premium materials, stainless steel: AISI 304/316
• Centrifugal pump
• Efficiency max 69 %

Pump Unit PU4000 CSJ17-4 (Motor, Pump End):

• Borehole diameter min. 6,0 inchi
• Water temperature max. 50 °C

Grafik Kemampuan Operasional Pompa Submersible PS2-4000 C-SJ17-4

Data Dimensi Dan Berat Pompa Submersible PS2-4000 CSJ17-4

Data Dimensi Controller PS2-4000

H1 = 352 mm
H2 = 333 mm
W1 = 207 mm
W2 = 170 mm
W3 = 164 mm
D1 = 124 mm

Data Dimensi Pump Unit C-SJ17-4

A = 754 mm
B = 245 mm
C = 609 mm
D = 96 mm
E = 133 mm
S = 2,5 in

Berat Bersih Pompa Submersible PS2-4000 C-SJ17-4

1. Controller PS2-4000 – 6,1 kg
2. Pump Unit C-SJ17-4– 21 kg
3. Motor ECDRIVE 4000-C – 10 kg
4. Pump End C-SJ17-4 – 11 kg
