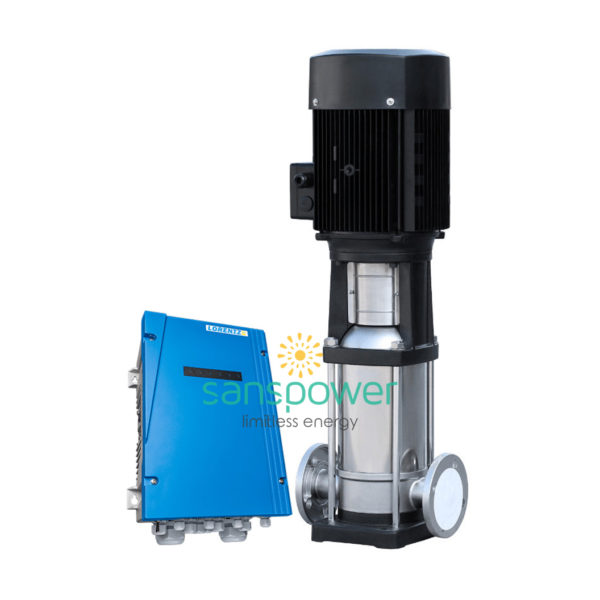

Pompa Surface LORENTZ PSk3-7 CS-F20-5

Fitur Utama Controller PSk3-7:

• High efficiency solar pump controller
• Hybrid power (solar/ grid/ generator) support with LORENTZ SmartSolution
• Inputs for water meter, pressure sensors, digital switches
• Onboard data logging and system monitoring
• Control inputs for dry running protection, remote control etc.
• Protected against reverse polarity, overload and overtemperature
• Integrated MPPT (Maximum Power Point Tracking)
• Integrated Sun Sensor
• Full setting using Android Apps: Lorentz PumpScanner
• Additional web based control: Lorentz PumpManager

Data Teknis Controller PSk3-7:

• Power max. 8,3 kW
• Input voltage max. 850 V
• Optimum Vmp** > 575 V
• Motor current max. 13 A
• Efficiency max. 98 %
• Ambient temp. -25…60 °C
• Enclosure class IP66

Fitur Utama Motor AC DRIVE CS-F 5,5 kW:

• Highly efficient 3 phase AC motor
• Frequency: 25 … 50 Hz
• No electronics in the motor

Data Teknis Motor AC DRIVE CS-F 5,5 kW:

• Rated power 5,5 kW
• Efficiency max. 78 %
• Motor speed 1.400…2.850 rpm
• Power factor 0,84
• Insulation class F
• Enclosure class IPX4

Fitur Utama Pump End PE CS-F20-5:

• Premium materials
• Optional: dry running protection
• Centrifugal pump
• Efficiency max. 77 %

Pump Unit PUk3-7 CS-F20-5 (Motor, Pump End):

• Water temperature max. 70 °C
• Suction head acc. to COMPASS sizing

Grafik Kemampuan Operasional Pompa Surface PSk3-7 CS-F20-5

Data Dimensi Dan Berat Pompa Surface PSk3-7 CS-F20-5

Data Dimensi Controller PSk3-7

H = 428 mm
H1 = 390 mm
H2 = 270 mm
W1 = 280 mm
W2 = 250 mm
D = 6,0 mm

Data Dimensi Pump Unit CS-F20-5

A = 260 mm
B = 208 mm
C = 430 mm
D = 300 mm
E = 199 mm
F = 130 mm
G = 90 mm
H = 562 mm
I = G1/2″
J = 247 mm
K = 215 mm
L = 50 mm
M = 125 mm
N = 18 mm
O = 35 mm
P = 14 mm

Berat Bersih LORENTZ PSk3-7 CS-F20-5

1. Controller PSk3-7 – 11,3 kg
2. Pump Unit CS-F20-5 – 76 kg
3. Motor AC DRIVE CS-F – 59 kg
4. Pump End CS-F20-5 – 17 kg

Jual pompa surface Lorentz untuk air bersih
Jual pompa surface Lorentz untuk irigasi
Konsultasi desain sistem silakan kontak tim kami
