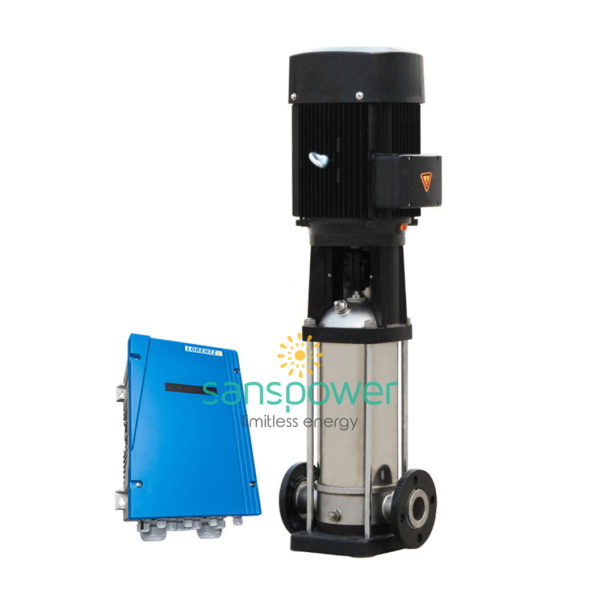

LORENTZ PSk3-15 CS-F20-7

Rp118000000
Category: Tags:
Ratings:
+
Deskripsi

Description

Download Datasheet

LORENTZ PSk3-15 CS-F20-7

Download datasheet pompa surface Lorentz PSk3-15 CS-F20-7

e-catalog

Cek produk di E-Catalogue LKPP

Pompa Surface LORENTZ PSk3-15 CS-F20-7

Fitur Utama Controller PSk3-15:
  • High efficiency solar pump controller
  • Hybrid power (solar/ grid/ generator) support with LORENTZ SmartSolution
  • Inputs for water meter, pressure sensors, digital switches
  • Onboard data logging and system monitoring
  • Control inputs for dry running protection, remote control etc.
  • Protected against reverse polarity, overload and overtemperature
  • Integrated MPPT (Maximum Power Point Tracking)
  • Integrated Sun Sensor
  • Full setting using Android Apps: Lorentz PumpScanner
  • Additional web based control: Lorentz PumpManager
Data Teknis Controller PSk3-15:
  • Power max. 16 kW
  • Input voltage max. 850 V
  • Optimum Vmp** > 575 V
  • Motor current max. 25 A
  • Efficiency max. 98 %
  • Ambient temp. -25…60 °C
  • Enclosure class IP66
Fitur Utama Motor AC DRIVE CS-F 7,5 kW:
  • Highly efficient 3 phase AC motor
  • Frequency: 25 … 51 Hz
  • No electronics in the motor
Data Teknis Motor AC DRIVE CS-F 7,5 kW:
  • Rated power 7,5 kW
  • Efficiency max. 80 %
  • Motor speed 1.400…2.905 rpm
  • Power factor 0,87
  • Insulation class F
  • Enclosure class IPX4
Fitur Utama Pump End PE CS-F20-7:
  • Premium materials
  • Optional: dry running protection
  • Centrifugal pump
  • Efficiency max. 75 %
Pump Unit PUk3-15 CS-F20-7 (Motor, Pump End):
  • Water temperature max. 70 °C
  • Suction head acc. to COMPASS sizing
Grafik Kemampuan Operasional Pompa Surface PSk3-15 CS-F20-7



pompa-surface-lorentz-pump-chart-PSk3-15-CS-F20-7-sanspower

Data Dimensi Dan Berat Pompa Surface PSk3-15 CS-F20-7

Data Dimensi Controller PSk3-15



psk3-15_controller

H = 428 mm
H1 = 390 mm
H2 = 270 mm
W1 = 280 mm
W2 = 250 mm
D = 6,0 mm

Data Dimensi Pump Unit CS-F20-7



pompa-surface-lorentz-pump-unit-PSk3-15 CS-F20-7-sanspower

A = 260 mm
B = 208 mm
C = 430 mm
D = 300 mm
E = 199 mm
F = 130 mm
G = 90 mm
H = 652 mm
I = G1/2″
J = 247 mm
K = 215 mm
L = 50 mm
M = 125 mm
N = 18 mm
O = 35 mm
P = 14 mm

Berat Bersih LORENTZ PSk3-15 CS-F20-7
  1. Controller PSk3-15 – 11,8 kg
  2. Pump Unit CS-F20-7 – 84 kg
  3. Motor AC DRIVE CS-F – 62 kg
  4. Pump End CS-F20-7 – 22 kg
