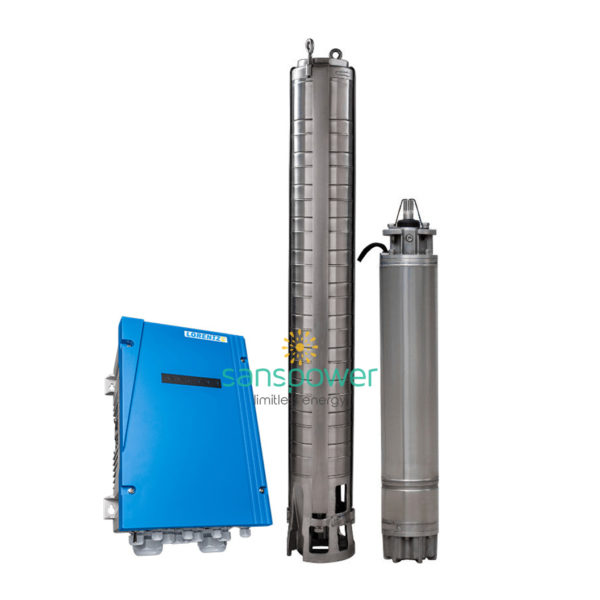

Pompa Submersible LORENTZ PSk3-15 C-SJ17-11

Fitur Utama Controller PSk3-15:

• High efficiency solar pump controller
• Hybrid power (solar / grid / generator) support with LORENTZ SmartSolution
• Inputs for water meter, pressure sensors, digital switches
• Simple configuration with LORENTZ PumpScanner Android App
• Onboard data logging and system monitoring
• Inbuilt applications for constant pressure, constant flow and daily amount
• Integrated Sun Sensor
• Active temperature management
• Integrated MPPT (Maximum Power Point Tracking)
• Full setting using Android Apps: Lorentz PumpScanner
• Additional web based control: Lorentz PumpManager

Data Teknis Controller PSk3-15:

• Power max. 16 kW
• Input voltage max. 850 V
• Optimum Vmp** > 575 V
• Motor current max. 25 A
• Efficiency max. 98 %
• Ambient temp. -25…60 °C
• Enclosure class IP66

Fitur Utama Motor AC DRIVE SUB 6″ 7,5 kW:

• Highly Efficient 3-phase AC motor
• Frequency: 25…54 hz
• Premium materials, stainless steel: AISI 304
• No electronics in the motor

Data Teknis Motor AC DRIVE SUB 6″:

• Rated power 7,5 kW
• Efficiency max. 80 %
• Motor speed 1.400…3.080 rpm
• Power Factor 0,87
• Insulation class F
• Enclosure class IP68
• Submersion max. 150 m

Fitur Utama Pump End PE C-SJ17-11

• Non-return valve
• Premium materials, stainless steel: AISI 304
• Centrifugal pump
• Efficiency max 73 %

Pump Unit PUk2-9 PE C-SJ17-11 (Motor, Pump End):

• Borehole diameter min. 6,0 inchi
• Water temperature max. 30 °C****

Grafik Kemampuan Operasional Pompa Submersible PSk3-15 C-SJ17-11

Data Dimensi Dan Berat Pompa Submersible PSk3-15 C-SJ17-11

Data Dimensi Controller PSk3-15

H = 428 mm
H1 = 390 mm
H2 = 270 mm
W1 = 280 mm
W2 = 250 mm
D = 6,0 mm

Data Dimensi Pump Unit PUk3-15 C-SJ17-11

A = 1.568 mm
B = 645 mm
C = 923mm
D = 144 mm
E = 133 mm
S = 2,5 in

Berat Bersih Pompa Submersible PSk3-15 C-SJ17-11

1. Controller PSk3-15 – 11,8 kg
2. Pump Unit PUk3-15 C-SJ17-11 – 72 kg
3. Motor AC DRIVE SUB 6″  – 51 kg
4. Pump End C-SJ17-11 – 21 kg
