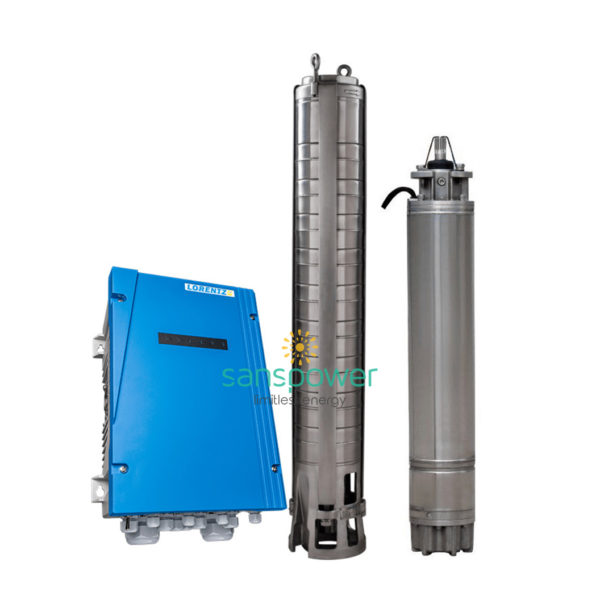

Pompa Submersible LORENTZ PSk3-7 C-SJ17-7

Fitur Utama Controller PSk3-7:

• High efficiency solar pump controller
• Hybrid power (solar / grid / generator) support with LORENTZ SmartSolution
• Inputs for water meter, pressure sensors, digital switches
• Simple configuration with LORENTZ PumpScanner AndroidApp
• Onboard data logging and system monitoring
• Inbuilt applications for constant pressure, constant flow and daily amount
• Integrated Sun Sensor
• Active temperature management
• Integrated MPPT (Maximum Power Point Tracking)
• Full setting using Android Apps: Lorentz PumpScanner
• Additional web based control: Lorentz PumpManager

Data Teknis Controller PSk3-7:

• Power max. 8,3 kW
• Input voltage max. 850 V
• Optimum Vmp** > 575 V
• Motor current max. 13 A
• Efficiency max. 98 %
• Ambient temp. -25…60 °C
• Enclosure class IP66

Fitur Utama Motor AC DRIVE SUB 4″ 4 kW:

• Highly Efficient 3-phase AC motor
• Frequency: 25…52 hz
• Premium materials, stainless steel: AISI 304
• No electronics in the motor

Data Teknis Motor AC DRIVE SUB 4″:

• Rated power 4 kW
• Frequency : 25…..52 Hz
• Motor speed 1400…2.965 rpm
• Insulation class F
• Enclosure class IP68
• Submersion max. 150 m

Fitur Utama Pump End PE C-SJ17-7

• Non-return valve
• Premium materials, stainless steel: AISI 304
• Optional: dry running protection
• Centrifugal pump
• Efficiency max 64 %

Pump Unit PUk3-7 PE C-SJ17-7 (Motor, Pump End):

• Borehole diameter min. 6,0 inchi
• Water temperature max. 30 °C****

Grafik Kemampuan Operasional Pompa Submersible PSk3-7 C-SJ17-7

Data Dimensi Dan Berat Pompa Submersible PSk3-7 C-SJ17-7

Data Dimensi Controller PSk3-7

H = 428 mm
H1 = 390 mm
H2 = 270 mm
W1 = 280 mm
W2 = 250 mm
D = 6,0 mm

Data Dimensi Pump Unit PUk3-7 C-SJ17-7

A = 1.340 mm
B = 640 mm
C = 700 mm
D = 96 mm
E = 133 mm
S = 2,5 in

Berat Bersih Pompa Submersible PSk3-7 C-SJ17-7

1. Controller PSk3-7 – 11,3 kg
2. Pump Unit PUk3-7 C-SJ17-7 – 33 kg
3. Motor AC DRIVE SUB 4″  – 20 kg
4. Pump End C-SJ17-7 – 13 kg
