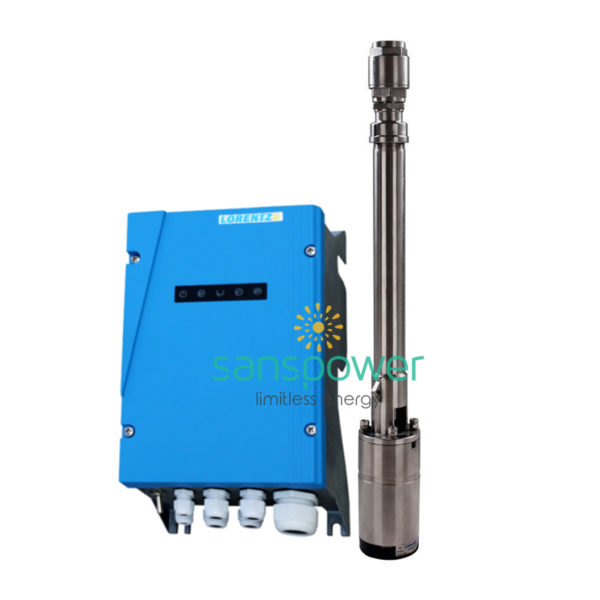

Pompa Submersible LORENTZ PS2-200 HR-04

Fitur Utama Controller PS2-200:

• Controlling and monitoring
• Control inputs for dry running protection, remote control etc.
• Protected against reverse polarity, overload and overtemperature
• Integrated MPPT (Maximum Power Point Tracking)
• Battery operation: Integrated low voltage disconnect
• Full setting using Android Apps: Lorentz PumpScanner
• Additional web based control: Lorentz PumpManager

Data Teknis Controller PS2-200:

• Power max. 0,30 kW
• Input voltage max. 100 V
• Optimum Vmp** > 34 V
• Motor current max. 11 A
• Efficiency max. 98 %
• Ambient temp. -40…50 °C
• Enclosure class IP68

Fitur Utama Motor ECDRIVE 200-HR:

• Maintenance-free brushless DC motor
• Water filled
• Premium materials, stainless steel: AISI 304/316
• No electronics in the motor

Data Teknis Motor ECDRIVE 200-HR:

• Rated power 0,30 kW
• Efficiency max. 92 %
• Motor speed 750…3.300 rpm
• Insulation class F
• Enclosure class IP68
• Submersion max. 150 m

Fitur Utama Pump End PE HR-04***:

• Non-return valve
• Premium materials, stainless steel: AISI 304/316
• Optional: dry running protection
• Helical rotor pump
• Efficiency max 55 %

Pump Unit PU200 HR-04 (Motor, Pump End):

• Borehole diameter min. 4,0 inchi
• Water temperature max. 50 °C

Grafik Kemampuan Operasional Pompa Submersible PS2-200 HR-04

Data Dimensi Dan Berat Pompa Submersible PS2-200 HR-04

Data Dimensi Controller PS2-200

H1 = 352 mm
H2 = 333 mm
W1 = 207 mm
W2 = 170 mm
W3 = 164 mm
D1 = 124 mm

Data Dimensi Pump Unit HR-04

A = 780 mm
B = 185 mm
C = 595 mm
D = 96 mm
S = 1,25 in

Berat Bersih Pompa Submersible PS2-200 HR-04

1. Controller PS-200 – 5,6 kg
2. Pump Unit HR-04 – 11 kg
3. Motor ECDRIVE 200-HR – 7,0 kg
4. Pump End HR-04 – 4,2 kg
