LORENTZ PS2-150 AHR-07S

Rp34000000
Category: Tags:

Pompa Air Tenaga Surya LORENTZ PS2-150 AHR-07S merupakan salah satu varian dari Pompa Air Tenaga Surya LORENTZ PS2-150. Adapun spesifikasi dasar dari Pompa Air Tenaga Surya LORENTZ PS2-150 AHR-07S adalah sebagai berikut :

Head max. 60 m
Flow rate max. 1,4 m³/h
Power : 0,30 kW
Borehole Diameter: min. 3,5 inchi

+
Deskripsi

Download Datasheet

LORENTZ PS2-150 AHR-07S

Download datasheet pompa submersible Lorentz PS2-150 AHR-07S

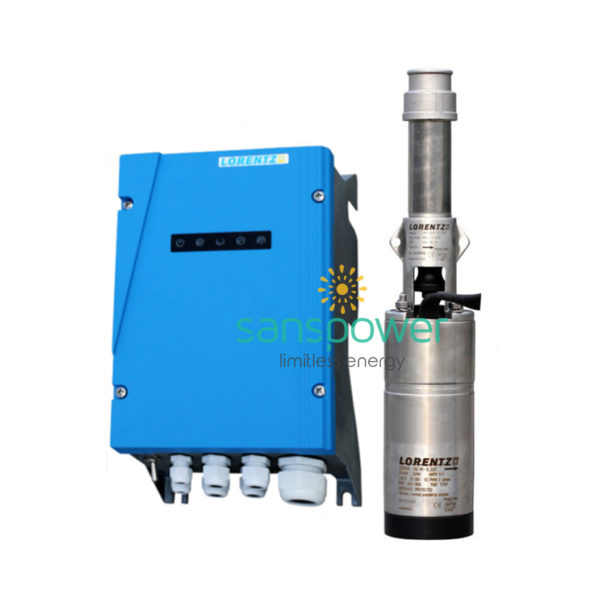

Pompa Submersible LORENTZ PS2-150 AHR-07S

Fitur Utama Controller PS2-150:
  • Controlling and monitoring
  • Control inputs for dry running protection, remote control etc.
  • Protected against reverse polarity, overload and overtemperature
  • Integrated MPPT (Maximum Power Point Tracking)
  • Battery operation: Integrated low voltage disconnect
  • Full setting using Android Apps: Lorentz PumpScanner
  • Additional web based control: Lorentz PumpManager
Data Teknis Controller PS2-150:
  • Power max. 0,30 kW
  • Input voltage max. 50 V
  • Optimum Vmp** > 17 V
  • Motor current max. 22 A
  • Efficiency max. 98 %
  • Ambient temp. -40…50 °C
  • Enclosure class IP68
Fitur Utama Motor ECDRIVE 150-AHR-S:
  • Maintenance-free brushless DC motor
  • Water filled
  • Premium materials, stainless steel: AISI 304
  • No electronics in the motor
Data Teknis Motor ECDRIVE 150-AHR-S:
  • Rated power 0,30 kW
  • Efficiency max. 92 %
  • Motor speed 700…3.300 rpm
  • Insulation class F
  • Enclosure class IP68
  • Submersion max. 150 m
Fitur Utama Pump End PE AHR-07S***:
  • Non-return valve
  • Premium materials, stainless steel: AISI 304/316
  • Optional: dry running protection
  • Helical rotor pump
  • Efficiency max 55 %
Pump Unit PU150 PE AHR-07S (Motor, Pump End):
  • Borehole diameter min. 3,5 inchi
  • Water temperature max. 50 °C
Grafik Kemampuan Operasional Pompa Submersible PS2-150 AHR-07S

pompa-submersible-lorentz-pump-chart--PS2-150-AHR-07S

Data Dimensi Dan Berat Pompa Submersible PS2-150 AHR-07S

Data Dimensi Controller PS2-150

pompa-submersible-lorentz-controller-PS2-150-AHR-07S

H1 = 352 mm
H2 = 333 mm
W1 = 207 mm
W2 = 170 mm
W3 = 164 mm
D1 = 124 mm

Data Dimensi Pump Unit AHR-07S

pompa-submersible-lorentz-pumpunit-PS2-150-AHR-07S

A = 454 mm
B = 211 mm
C = 243 mm
D = 88 mm
S = 1 in

Berat Bersih Pompa Submersible PS2-150 AHR-07S
  1. Controller PS-150 – 5,6 kg
  2. Pump Unit AHR-07S – 8,4 kg
  3. Motor ECDRIVE 150-AHR-S – 6,8 kg
  4. Pump End AHR-07S – 1,6 kg
