POLYCRISTALLINE 200 WP – LUMINOUS

Rp2800000
Category: Tags:
Ratings:
+
Deskripsi

Description

Download Datasheet

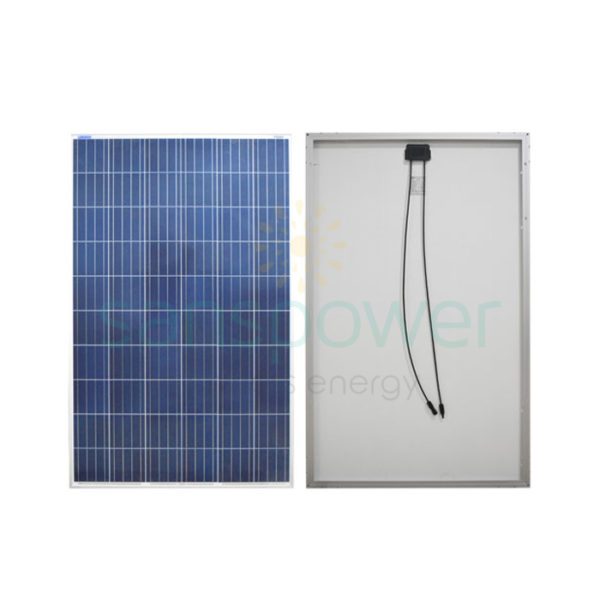

POLYCRISTALLINE 200 WP – LUMINOUS

Download datasheet panel surya Polycristalline 200 WP.

Panel Surya Polycristalline 200 WP – LUM200P

Fitur Utama Panel Surya Polycristalline 200 WP – LUM150P:
  • Positive tolerance to ensure higher output.
  • Excellent performance under weak light conditions.
  • Modules withstand extremely (temperature, load, and impact) TUV Certification.
  • all modules combination and packing through stepping current to keep affectively reduce mismatch loss within.
  • 100 % EL test to keep higher quality.
Panel Surya Berkualitas Yang Bisa Diandalkan
  • Anodized alumunium frame withstand corrosion and damage, special osculum can reduce destruction by water freeze.
  • 100 % EL double-inspection ensure modules are defects free
  • IP65 junction box long-term weather endurance.
  • Certificate ISO9001, ISO14001,OHSAS18001, IEC 61215, IEC 61730, IEC, CE, RoHS.
Data Teknis Panel Surya Polycristalline 200 WP:
  • Maximum Power at STC* (Pmax): 200 W
  • Short Circuit Current (Isc): 6,02 A
  • Open Circuit Voltage (Voc): 42,8 V
  • Maximum Power Current (Imp): 5,51 A
  • Maximum Power Voltage (Vmp): 36,3 V
  • Module Efficiency: 15,18 %
  • Power Tolerance: 0 – +3 %
  • Maximum system voltage: VDC 1000 V
  • Maximum Series Fuse: 15 A
  • Operating Temperature: -40 to +85 °C
Grafik Kemampuan Panel Surya Polycristalline 200 WP

grafik panel surya 200 wp luminous

 Data Dimensi Dan Berat Panel Surya Polycristalline 200 WP:

dimensi panel surya 200 wp poly luminous

Dimensi Panel Surya: 1330 mm x 990 mm x 30 mm
Berat Panel Surya: 14,7 kg

*STC: irradiance 1000 W/m²




Jual Panel Surya untuk Aplikasi Pompa Air Tenaga Surya (PATS)
Jual Panel Surya untuk Aplikasi Pembangkit Listrik Tenaga Surya (PLTS)
