POLYCRISTALLINE 150 WP – SOLANA

Rp2100000
Category: Tags:

Spesifikasi dasar dari Panel Surya Polycristalline 150 WP – SOL-P12150W adalah sebagai berikut :

Maximum Power (Pmax) : 150 W
Short Circuit Current (Isc) : 8,83 A
Open Circuit Voltage (Voc) : 22 V
Maximum Power Current (Imp) : 8,33 A
Maximum Power Voltage (Vmp) : 18 V

+
Deskripsi

Download Datasheet

POLYCRISTALLINE 150 WP - SOLANA

Download datasheet panel surya Polycristalline 150 WP.

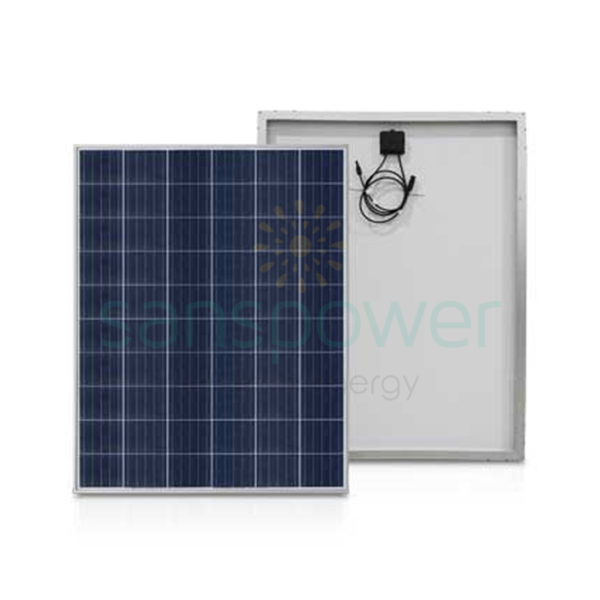

Panel Surya Polycristalline 150 WP – SOL-P12150W

Fitur Utama Panel Surya Polycristalline 150 WP – SOL-P12150W:
  • Cell. The hi-efficiency of mono and poly solar cells ensure adequate power for panels.
  • Glass. Low-iron tempered glass, 3.2mm thiickness with higher reflectivity.
  • EVA. Higher transmission rate, antioxidant capacity and temperature resistance, no expansion or contraction.
  • Back Film. Increase efficiency of modules slightly and reduce module’s temperature. Aging resistance, corrosion resistance and air tight.
  • Alumunium Frame. Using the framework of the anodized alumunium frame with high intensity, mechanical shock resistance capacity.
  • Modules withstand extremely (temperature, load, and impact) TUV Certification.
Panel Surya Berkualitas Yang Bisa Diandalkan
  • 100 % EL double-inspection ensure modules are defects free
  • IP65 junction box long-term weather endurance.
  • Certificate ISO, IEC 61215, IEC 61730, CE, CQC.
Data Teknis Panel Surya Polycristalline 150 WP:
  • Maximum Power at STC* (Pmax): 150 W
  • Short Circuit Current (Isc): 8,83 A
  • Open Circuit Voltage (Voc): 22 V
  • Maximum Power Current (Imp): 8,33 A
  • Maximum Power Voltage (Vmp): 18 V
  • Module Efficiency: 15,1 %
  • Power Tolerance: 0 – +3 %
  • Maximum system voltage: VDC 600 V
  • Maximum Series Fuse: 10 A
  • Operating Temperature: -40 to +85 °C

Data Dimensi Dan Berat Panel Surya Polycristalline 150 WP:

dimensi panel surya 150 wp poly solana

Dimensi Panel Surya: 1480 mm x 670 mm x 35 mm
Berat Panel Surya: 10,4 kg

*STC: irradiance 1000 W/m²


Jual Panel Surya untuk Aplikasi Pompa Air Tenaga Surya (PATS)
Jual Panel Surya untuk Aplikasi Pembangkit Listrik Tenaga Surya (PLTS)
