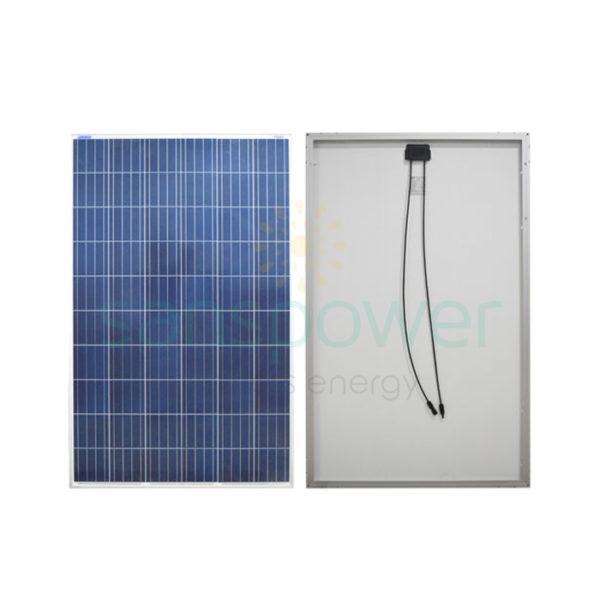

Panel Surya Polycristalline 150 WP – LUM150P

Fitur Utama Panel Surya Polycristalline 150 WP – LUM150P:

• Positive tolerance to ensure higher output.
• Excellent performance under weak light conditions.
• Modules withstand extremely (temperature, load, and impact) TUV Certification.
• all modules combination and packing through stepping current to keep affectively reduce mismatch loss within.
• 100 % EL test to keep higher quality.

Panel Surya Berkualitas Yang Bisa Diandalkan

• Anodized alumunium frame withstand corrosion and damage, special osculum can reduce destruction by water freeze.
• 100 % EL double-inspection ensure modules are defects free
• IP65 junction box long-term weather endurance.
• Certificate ISO9001, ISO14001,OHSAS18001, IEC 61215, IEC 61730, IEC, CE, RoHS.

Data Teknis Panel Surya Polycristalline 150 WP:

• Maximum Power at STC* (Pmax): 150 W
• Short Circuit Current (Isc): 8,83 A
• Open Circuit Voltage (Voc): 22,1 V
• Maximum Power Current (Imp): 8,25 A
• Maximum Power Voltage (Vmp): 18,2 V
• Module Efficiency: 15,24 %
• Power Tolerance: 0 – +3 %
• Maximum system voltage: VDC 800 V
• Maximum Series Fuse: 15 A
• Operating Temperature: -40 to +85 °C

Grafik Kemampuan Panel Surya Polycristalline 150 WP

 Data Dimensi Dan Berat Panel Surya Polycristalline 150 WP:

Dimensi Panel Surya: 1480 mm x 665 mm x 30 mm
Berat Panel Surya: 11,2 kg

*STC: irradiance 1000 W/m²
