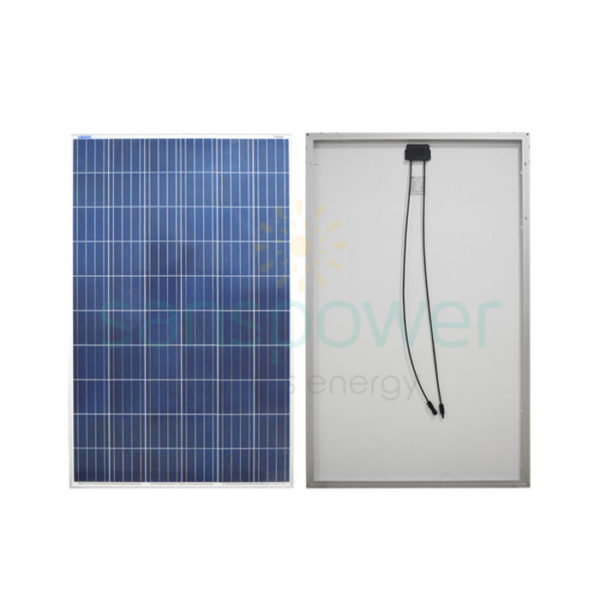

POLYCRISTALLINE 100 WP – LUMINOUS

Rp1300000
Category: Tags:

Spesifikasi dasar dari Panel Surya Polycristalline 100 WP – LUM100P adalah sebagai berikut :

Maximum Power (Pmax) : 100 W
Short Circuit Current (Isc) : 6 A
Open Circuit Voltage (Voc) : 22,1 V
Maximum Power Current (Imp) : 5,49 A
Maximum Power Voltage (Vmp) : 18,2 V

+
Deskripsi

Download Datasheet

POLYCRISTALLINE 100 WP - LUMINOUS

Download datasheet panel surya Polycristalline 100 WP.

Panel Surya Polycristalline 100 WP – LUM100P

Fitur Utama Polycristalline 100 WP:
  • Positive tolerance to ensure higher output.
  • Excellent performance under weak light conditions.
  • Modules withstand extremely (temperature, load, and impact) TUV Certification.
  • all modules combination and packing through stepping current to keep affectively reduce mismatch loss within.
  • Excelent mechanical load resistance: Certified to withstand high wind loads (2400 Pa) and snow loads (5400 Pa)
  • 100 % EL test to keep higher quality.
Panel Surya Berkualitas Yang Bisa Diandalkan
  • Anodized alumunium frame withstand corrosion and damage, special osculum can reduce destruction by water freeze.
  • 100 % EL double-inspection ensure modules are defects free
  • IP65 junction box long-term weather endurance.
  • Certificate ISO9001, ISO14001,OHSAS18001, IEC 61215, IEC 61730, IEC, CE, RoHS.
Data Teknis Panel Surya Polycristalline 100 WP:
  • Maximum Power at STC* (Pmax): 100 W
  • Short Circuit Current (Isc): 6 A
  • Open Circuit Voltage (Voc): 22,1 V
  • Maximum Power Current (Imp): 5,49 A
  • Maximum Power Voltage (Vmp): 18,2 V
  • Module Efficiency: 14,96 %
  • Power Tolerance: 0 – +3 %
  • Maximum system voltage: VDC 800 V
  • Maximum Series Fuse: 10 A
  • Operating Temperature: -40 to +85 °C
Grafik Kemampuan Panel Surya Polycristalline 100 WP

grafik panel surya 100 wp poly luminous

Data Dimensi Dan Berat Panel Surya Polycristalline 100 WP:

dimensi panel surya 100 wp poly luminous

Dimensi: 1005 mm x 665 mm x 25 mm
Berat: 7,4 kkg

*STC: irradiance 1000 W/m²
