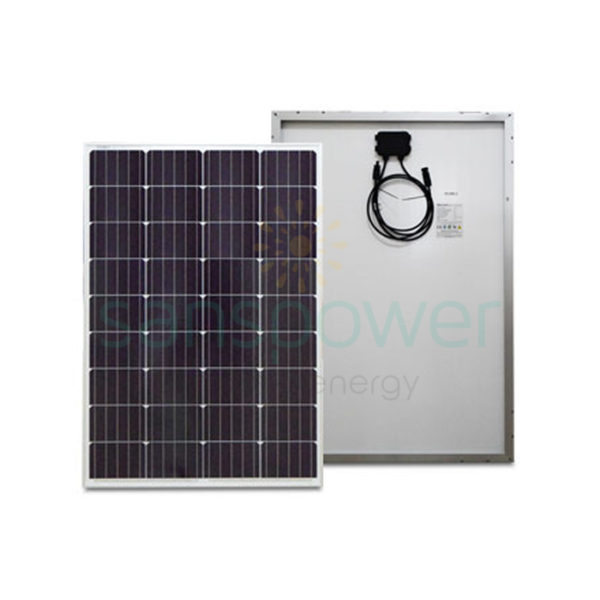

Panel Surya Monocristalline 200 WP – SOL-M24200W

Fitur Utama Panel Surya Monocristalline 200 WP – SOL-M24200W:

• Cell. The hi-efficiency of mono and poly solar cells ensure adequate power for panels.
• Glass. Low-iron tempered glass, 3.2mm thiickness with higher reflectivity.
• EVA. Higher transmission rate, antioxidant capacity and temperature resistance, no expansion or contraction.
• Back Film. Increase efficiency of modules slightly and reduce module’s temperature. Aging resistance, corrosion resistance and air tight.
• Alumunium Frame. Using the framework of the anodized alumunium frame with high intensity, mechanical shock resistance capacity.
• Modules withstand extremely (temperature, load, and impact) TUV Certification.

Panel Surya Berkualitas Yang Bisa Diandalkan

• 100 % EL double-inspection ensure modules are defects free
• IP65 junction box long-term weather endurance.
• Certificate ISO, IEC 61215, IEC 61730, CE, CQC.

Data Teknis Panel Surya Monocristalline 200 WP:

• Maximum Power at STC* (Pmax): 200 W
• Short Circuit Current (Isc): 5,91 A
• Open Circuit Voltage (Voc): 43,7 V
• Maximum Power Current (Imp): 5,57 A
• Maximum Power Voltage (Vmp): 35,9 V
• Module Efficiency: 15,3 %
• Power Tolerance: 0 – +3 %
• Maximum system voltage: VDC 1000 V
• Maximum Series Fuse: 15 A
• Operating Temperature: -40 to +85 °C

Data Dimensi Dan Berat Panel Surya Monocristalline 200 WP:

Dimensi Panel Surya: 1320 mm x 992 mm x 35 mm
Berat Panel Surya: 15,8 kg

*STC: irradiance 1000 W/m²
