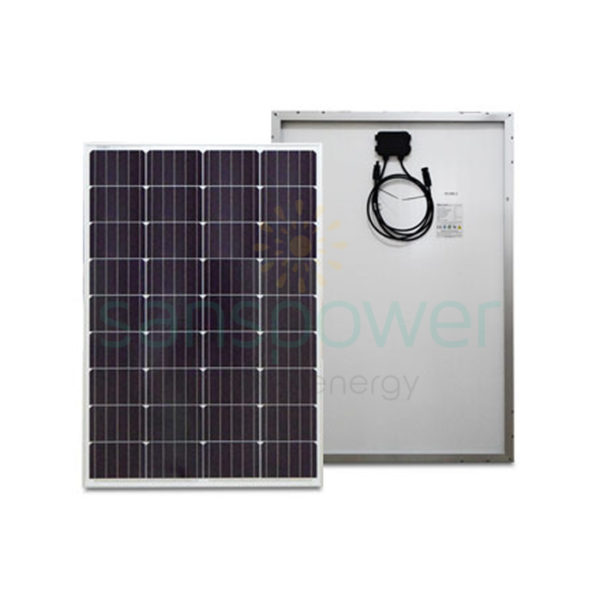

Panel Surya Monocristalline 100 WP – SOL-M12100W

Fitur Utama Panel Surya Monocristalline 100 WP – SOL-M12100W:

• Cell. The hi-efficiency of mono and poly solar cells ensure adequate power for panels.
• Glass. Low-iron tempered glass, 3.2mm thiickness with higher reflectivity.
• EVA. Higher transmission rate, antioxidant capacity and temperature resistance, no expansion or contraction.
• Back Film. Increase efficiency of modules slightly and reduce module’s temperature. Aging resistance, corrosion resistance and air tight.
• Alumunium Frame. Using the framework of the anodized alumunium frame with high intensity, mechanical shock resistance capacity.
• Modules withstand extremely (temperature, load, and impact) TUV Certification.

Panel Surya Berkualitas Yang Bisa Diandalkan

• 100 % EL double-inspection ensure modules are defects free
• IP65 junction box long-term weather endurance.
• Certificate ISO, IEC 61215, IEC 61730, CE, CQC.

Data Teknis Panel Surya Monocristalline 100 WP:

• Maximum Power at STC* (Pmax): 100 W
• Short Circuit Current (Isc): 5,86 A
• Open Circuit Voltage (Voc): 22,1 V
• Maximum Power Current (Imp): 5,52 A
• Maximum Power Voltage (Vmp): 18,1 V
• Module Efficiency: 14,9 %
• Power Tolerance: 0 – +3 %
• Maximum system voltage: VDC 600 V
• Maximum Series Fuse: 10 A
• Operating Temperature: -40 to +85 °C

Data Dimensi Dan Berat Panel Surya Monocristalline 100 WP:

Dimensi Panel Surya: 1000 mm x 670 mm x 30 mm
Berat Panel Surya: 8 kg

*STC: irradiance 1000 W/m²

Jual Panel Surya untuk Aplikasi Pompa Air Tenaga Surya (PATS)
Jual Panel Surya untuk Aplikasi Pembangkit Listrik Tenaga Surya (PLTS)
